S2 3D Smart Mini Projector

Many in stock

Projector

www.toumeipro.com

$559.99
Color
Silver
Adaptor
3D Glasses
-
+
$559.99

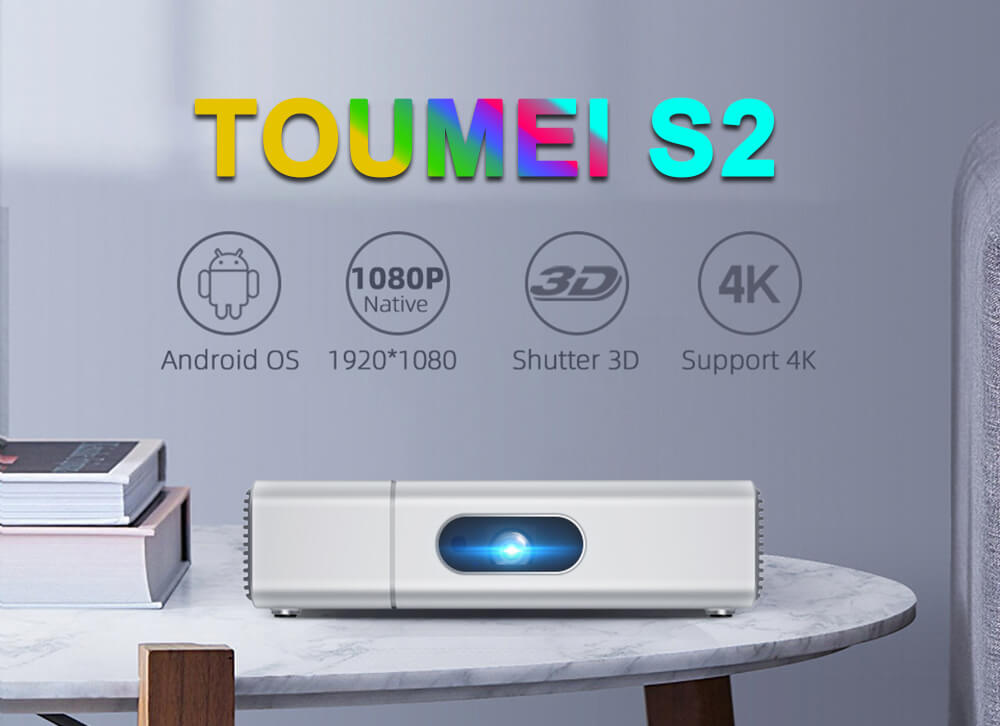

Toumei S2 PICO 3D 4K PROJECTOR

S2 Information

Toumei S2 Mini Projector features 120 inches big screen, with high brightness of 500 ANSI Lumens/7000LUX, the native resolution is 1920*1080, the image is colorful. Using CPU of MStar6A648, support 3D (DLP-Link) Function, decode 4K resource. With build-in Android 6.0 system, download Apps like Youtube\Netflix directly and easily, support 2.4G/5.0gG dual-band WiFi, support hotspot and Bluetooth, With MStar6A648 CPU, 2G DDR3 RAM and 32G Emmc ROM, Support maximum 32TF card, with HDMI port and USB port, with 100% off-axis ray design makes it best competitive and unique, it is suitable for various applications like the living room, home cinema, or outdoor party.

S2 Details
Toumei Mini Projector S2 Details 01 Toumei Portable Mini Projector S2 Details 02 Toumei 1080P Mini Projector S2 Details 03 Toumei Smart 3D Mini Projector S2 Details 04Toumei S2 Real 1080P 3D Mini Projector DetailsToumei 3D Mini Projector S2 Details 06 Toumei Smart Mini Projector S2 Details 07 Toumei Smart 3D Mini Projector Details 08 Toumei Smart Portable Projector S2 Details 09 Toumei HD Mini Projector S2 Details 10 Toumei Outdoor Mini Projector S2 Details 11 Toumei Home Theater Mini Projector S2 Details 12 Toumei Full HD Mini Projector S2 Details 13 Toumei 1080P Projector S2 Details 14 Toumei DLP Projector S2 Details 15 Toumei 3D Projector S2 Details 16 Toumei 4K Projector S2 Details 17 Toumei Smart 3D Projector S2 Details 18 Toumei Smart 4K Projector S2 Details 19 Toumei Smart Real 1080P Projector S2 Details 20 Toumei Smart Portable Projector S2 Details 21 Toumei Smart DLP Projector S2 Details 22 Toumei Smart HD Projector S2 Details 23 Toumei Smart Home Theater Projector S2 Details 24 Toumei HD Mini Projector S2 Details 25 Toumei HD 3D Mini Projector S2 Details 26 Toumei Portable 3D Projector S2 Details 27
S2 Package List

☑ 1 x S2 HD TV Home Projector Device
☑ 1 x Power adapter
☑ 1 x IR remote control
☑ 1 x User manual
☑ 1 x HDMI cable

S2 Specifications
Item Product Characteristic Product parameters
OPTICS Display Type DLP
Display Chip TI 0.23 inch WVGA DMD*RGBLED (With Off-axis Ray Machine)>100%
Projector Feature Interactive
Brightness 500 ANSI Lumens / 7000 LUX
Lamp OSRAM LED Lamps
Uniformity >90%
FOFO Contrast Ratio 1000:1
Standard Resolution 1920 x 1080P
3D Support 3D function(DLP-LINK)
PROJECTION Throw Ratio 1.2:1
Throw Range 30-120 inches
Throw Distance 1-6 Meter(s)
Aspect Ratio 4:3/16:9/16:10

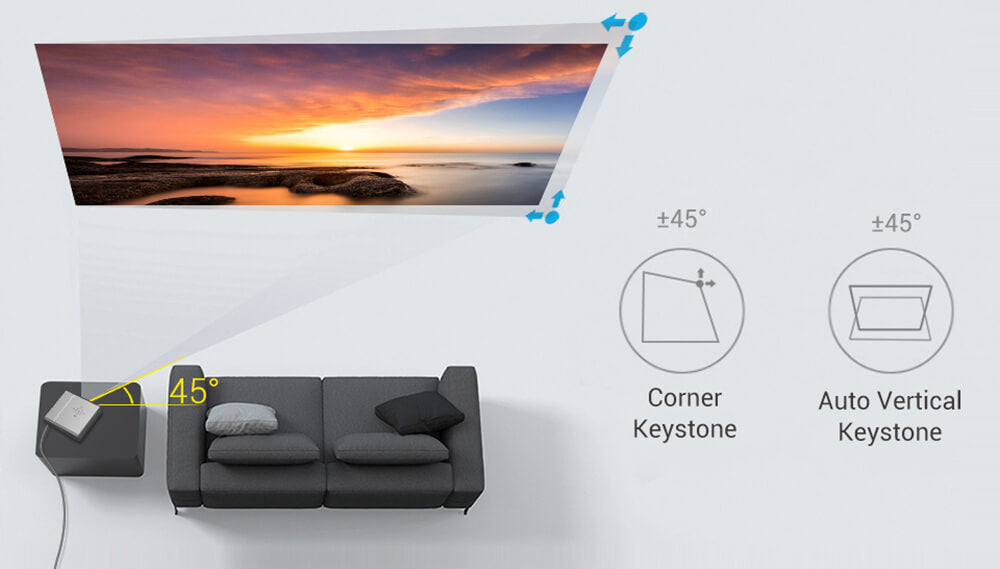

Keystone Correction Supports automatic and manual
Projection Methods Front Projection   back-projection   hang projection
SYSTEM PARAMETERS CPU MStar6A648 Decode 4K H.265/VP9  4K*2K/60HZ
Clock Speed 64 bits CPU: Cortex A53 Quad-Core GPU: Mali-450mp4
RAM 2G DDR3
ROM 32GB Emmc
Operating System Android 6.0
Video Support Real-Time Video Decoder for MPEG-1 MPEG-2 MPEG-4, H263,H264,H265,VC-1,RV, 1080P  VP8, Sorenson SparkWAV
Audio Support MP3,WMA,MP2,0GG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Photo Support Supports a variety of image formats browsing jpg png BMP etc
Bluetooth BT 4.2 (Support external Bluetooth Speaker, mouse, and gamepad)
WIFI 2.4G/5G Dual-band WIFI
Remote Control Infrared remote control and support connect the 2.4g wireless remote control and the mouse
Power Input Parameters 19V-3.42A DC
Input Support USB, IR
INTERFACE Extended Memory TF card and SSD Hard Disk
HDMI Support HDMI 2.0 Input
USB USB HOST 2.0*2, Able to read data from USB hard drive, support mouse and keyboard
Headphone Output Audio output, 3.5mm connectors (can connect headphones or speakers)
DC Input Power adapter: DC 19 3.42A
ELECTRICAL SPECIFICATIONS Total Power Consumption 50W
Power Performance AC110-240V, 50/60Hz No built-in battery
OTHER PARAMETERS Product Size 180*180*45mm
Package Size 360*250*56mm
Net Weight 785g
Package Weight(1set) 1.7Kg
Package Weight
(12set/box)
17.2KG
Carton Size(12set/box) 550*380*350mm
Take V5 as the example
How to setup?
Turn on the projector
Focus


How to choose the language?

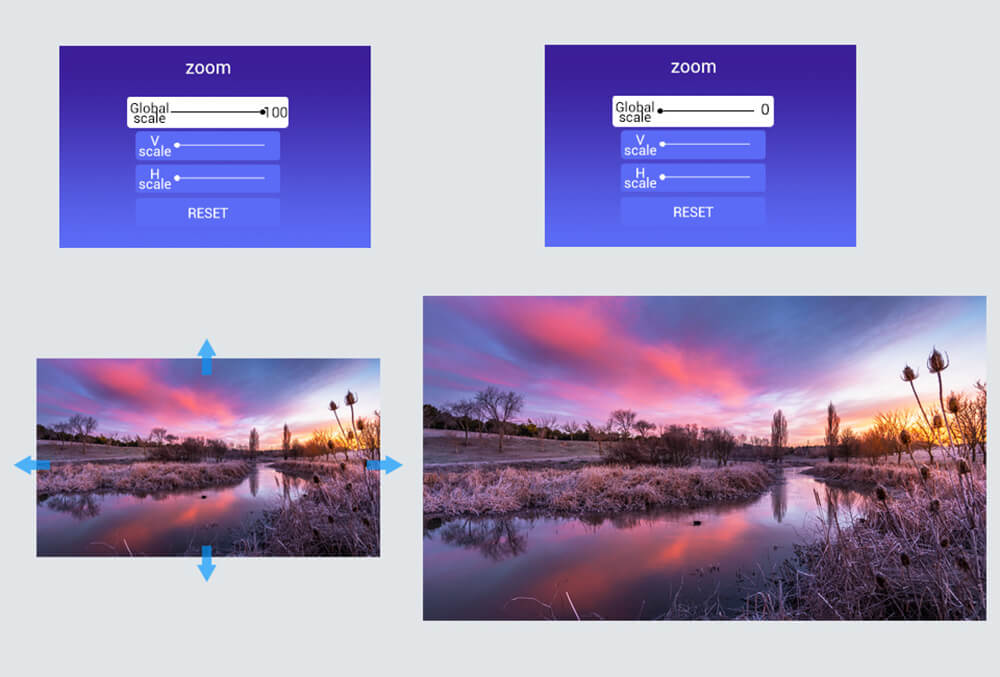

How to adjust the screen?



How to connect with WiFi?


How to airplay your phone?



How to connect your bluetooth speaker?
Turn on the speaker, Turn on the bluetooth of projector, connect them together



How to connect your computer?
Connect by HDMI cable.


How to connect your gamepad?
Connect by HDMI cable.

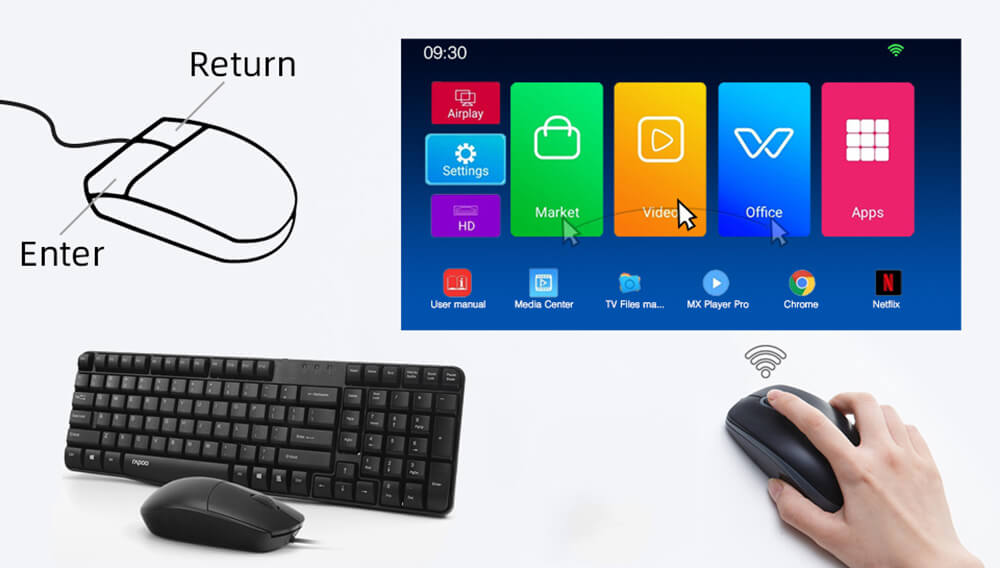

How to connect the mouse?
Plug mouse in USB port



How to watch 3D movie?
Take a shutter 3D glasses



What is the best throw distance
2-3Meters


It can support what kind of video format ?
MPEG-1 MPEG-2 MPEG-4Real-time video decoder, H263,H264,H265,1080P, Sorenson Spark,WAV

It can support what kind of audio format?
MP3,WMA,MP2,0GG,AAC,M4A,MA4,FLAC,APE,3GP,WAV


It can support what kind of image format?
Jpg, Png Bmp etc.

How to control your projector?
By mouse, by Remote controller

How to download Apps?
By google play store or Aptoide


How to fix the problem of  system?
